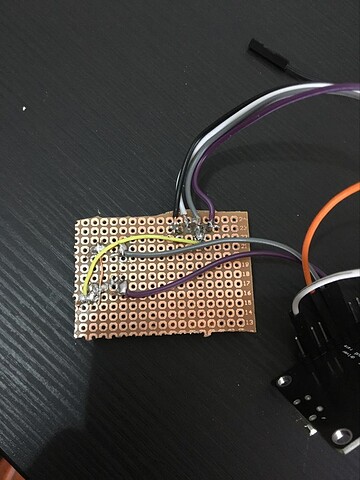

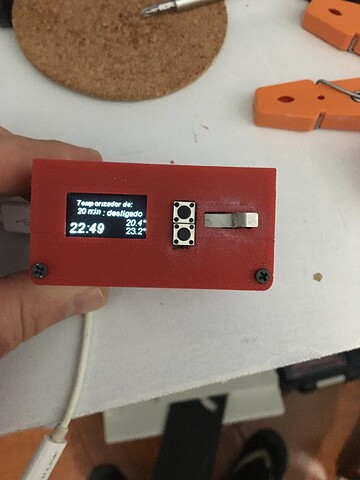

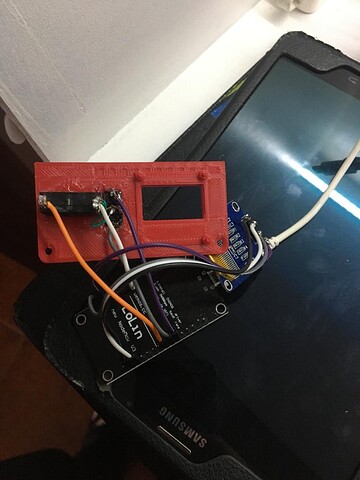

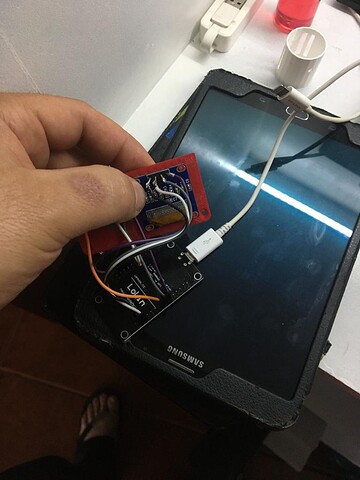

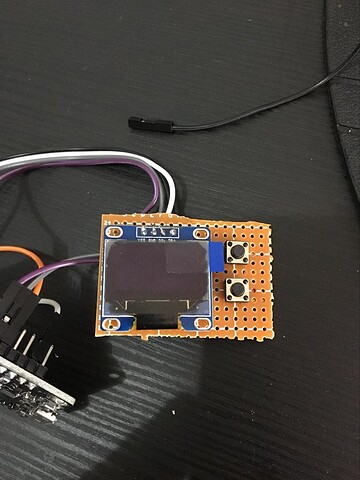

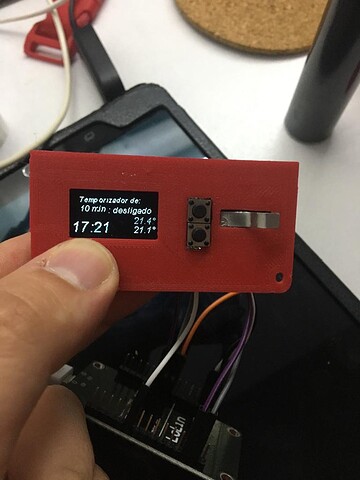

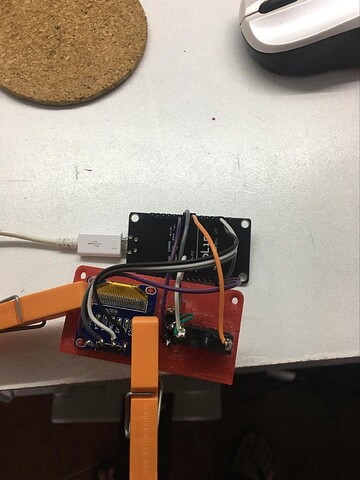

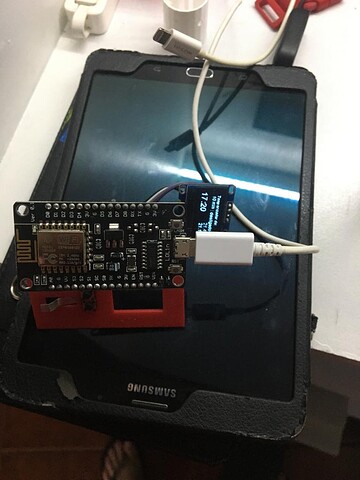

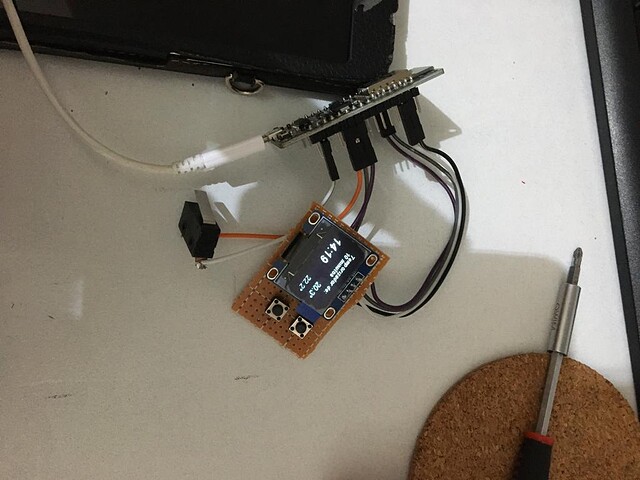

Temporizador de cozinha (nodered, esphome, nodemcu+lcd)

Boa tarde, deixo aqui a minha idea para um temporizador de cozinha ou do que for preciso, está a funcionar bem mas provavelmente haverá alguém capaz de fazer o mesmo de forma mais simples, contudo deixo aqui a minha contribuição:

primeiro criar um inputbollean:

input_boolean:
  alarm_clock_status:
    initial: on

criar input_number:

input_number:
    alarm_clock_minute:
        name: Minutos
        icon: mdi:timer
        initial: 0
        min: 0
        max: 120
        step: 5

criar 2 scripts para aumentar de 5 em 5 min:

'1583966373784':
  alias: +5 minutos
  sequence:
  - entity_id: input_number.alarm_clock_minute
    service: input_number.increment
'1583966408415':
  alias: -5 minutos
  sequence:
  - entity_id: input_number.alarm_clock_minute
    service: input_number.decrement

no node-red instalar o node mytimeout atraves de: npm i node-red-contrib-mytimeout

com isto feito atravez do node red as seguntes automaçoes:
Codigo dos nodes:

[
    {
        "id": "5bb46d8c.7ff464",
        "type": "server-state-changed",
        "z": "bdaa28be.9968d8",
        "name": "Botao -5min",
        "server": "3be8359a.800b9a",
        "version": 1,
        "exposeToHomeAssistant": false,
        "haConfig": [
            {
                "property": "name",
                "value": ""
            },
            {
                "property": "icon",
                "value": ""
            }
        ],
        "entityidfilter": "binary_sensor.menos_5_min",
        "entityidfiltertype": "exact",
        "outputinitially": false,
        "state_type": "str",
        "haltifstate": "",
        "halt_if_type": "str",
        "halt_if_compare": "is",
        "outputs": 1,
        "output_only_on_state_change": true,
        "x": 110,
        "y": 160,
        "wires": [
            [
                "8c55fa15.3af128"
            ]
        ]
    },
    {
        "id": "8c55fa15.3af128",
        "type": "switch",
        "z": "bdaa28be.9968d8",
        "name": "",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "off",
                "vt": "str"
            },
            {
                "t": "eq",
                "v": "on",
                "vt": "str"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 270,
        "y": 160,
        "wires": [
            [],
            [
                "3242e7cc.13f418"
            ]
        ]
    },
    {
        "id": "3242e7cc.13f418",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "script",
        "service": "1583966408415",
        "entityId": "",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 480,
        "y": 160,
        "wires": [
            []
        ]
    },
    {
        "id": "b3e3901c.35c1f",
        "type": "server-state-changed",
        "z": "bdaa28be.9968d8",
        "name": "on/off timer",
        "server": "3be8359a.800b9a",
        "version": 1,
        "exposeToHomeAssistant": false,
        "haConfig": [
            {
                "property": "name",
                "value": ""
            },
            {
                "property": "icon",
                "value": ""
            }
        ],
        "entityidfilter": "input_boolean.alarm_clock_status",
        "entityidfiltertype": "exact",
        "outputinitially": false,
        "state_type": "str",
        "haltifstate": "",
        "halt_if_type": "str",
        "halt_if_compare": "is",
        "outputs": 1,
        "output_only_on_state_change": true,
        "x": 100,
        "y": 280,
        "wires": [
            [
                "96706e60.0dc93"
            ]
        ]
    },
    {
        "id": "96706e60.0dc93",
        "type": "switch",
        "z": "bdaa28be.9968d8",
        "name": "on  ??  off  ??",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "off",
                "vt": "str"
            },
            {
                "t": "eq",
                "v": "on",
                "vt": "str"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 310,
        "y": 280,
        "wires": [
            [
                "fa18b891.9d6b98"
            ],
            [
                "80206397.9e621"
            ]
        ]
    },
    {
        "id": "80206397.9e621",
        "type": "api-current-state",
        "z": "bdaa28be.9968d8",
        "name": "input_number.alarm_clock_minute",
        "server": "3be8359a.800b9a",
        "version": 1,
        "outputs": 1,
        "halt_if": "",
        "halt_if_type": "str",
        "halt_if_compare": "is",
        "override_topic": false,
        "entity_id": "input_number.alarm_clock_minute",
        "state_type": "num",
        "state_location": "payload",
        "override_payload": "msg",
        "entity_location": "data",
        "override_data": "msg",
        "blockInputOverrides": false,
        "x": 200,
        "y": 400,
        "wires": [
            [
                "5ab25816.7d2078"
            ]
        ]
    },
    {
        "id": "5ab25816.7d2078",
        "type": "function",
        "z": "bdaa28be.9968d8",
        "name": "min p/ timer",
        "func": "t=msg.payload * 60\nnewMSG = { \"warning\": 0, \"timeout\": t}\nreturn newMSG;",
        "outputs": 1,
        "noerr": 0,
        "x": 110,
        "y": 460,
        "wires": [
            [
                "59908242.a5091c"
            ]
        ]
    },
    {
        "id": "59908242.a5091c",
        "type": "mytimeout",
        "z": "bdaa28be.9968d8",
        "name": "",
        "outtopic": "",
        "outsafe": "",
        "outwarning": "Warning",
        "outunsafe": "off",
        "warning": "5",
        "timer": "30",
        "debug": false,
        "ndebug": false,
        "ignoreCase": false,
        "repeat": false,
        "again": false,
        "x": 130,
        "y": 560,
        "wires": [
            [
                "fc5ad9a9.e7a168",
                "51858ebc.f009e",
                "2f260794.e3b488"
            ],
            []
        ]
    },
    {
        "id": "51858ebc.f009e",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "tts",
        "service": "google_say",
        "entityId": "media_player.googlehome2032",
        "data": "{\"message\":\"o temporizador chegou ao fim\"}",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 410,
        "y": 540,
        "wires": [
            []
        ]
    },
    {
        "id": "a47c1444.4150b8",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 440,
        "wires": [
            [
                "f26351c3.19363"
            ]
        ]
    },
    {
        "id": "38b6aee0.9df982",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 440,
        "wires": [
            [
                "a47c1444.4150b8"
            ],
            []
        ]
    },
    {
        "id": "f26351c3.19363",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 480,
        "wires": [
            [
                "725b8289.3e0b9c"
            ],
            []
        ]
    },
    {
        "id": "c1de1a47.1a6f58",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 520,
        "wires": [
            [
                "315f5064.91bd8"
            ],
            []
        ]
    },
    {
        "id": "f0e66411.1670b8",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 560,
        "wires": [
            [
                "a006bdc6.64968"
            ],
            []
        ]
    },
    {
        "id": "dd2183df.6ccbd",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 600,
        "wires": [
            [
                "9bdfba15.705ea8"
            ],
            []
        ]
    },
    {
        "id": "b15eb6c8.9bf848",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 640,
        "wires": [
            [
                "73d87a90.8ee894"
            ],
            []
        ]
    },
    {
        "id": "56c8c1b4.0f1ac",
        "type": "stoptimer",
        "z": "bdaa28be.9968d8",
        "duration": "1",
        "units": "Second",
        "payloadtype": "num",
        "payloadval": "0",
        "name": "",
        "x": 640,
        "y": 680,
        "wires": [
            [
                "96f762fe.4ab56"
            ],
            []
        ]
    },
    {
        "id": "fc5ad9a9.e7a168",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "input_boolean",
        "service": "turn_off",
        "entityId": "input_boolean.alarm_clock_status",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 360,
        "y": 600,
        "wires": [
            []
        ]
    },
    {
        "id": "fa18b891.9d6b98",
        "type": "function",
        "z": "bdaa28be.9968d8",
        "name": "Cancelar o timer",
        "func": "{\n    msg.payload = {  \"payload\": \"cancel\" };\n}\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 500,
        "y": 280,
        "wires": [
            [
                "59908242.a5091c"
            ]
        ]
    },
    {
        "id": "85404376.3330e",
        "type": "server-state-changed",
        "z": "bdaa28be.9968d8",
        "name": "Botao -5min",
        "server": "3be8359a.800b9a",
        "version": 1,
        "exposeToHomeAssistant": false,
        "haConfig": [
            {
                "property": "name",
                "value": ""
            },
            {
                "property": "icon",
                "value": ""
            }
        ],
        "entityidfilter": "binary_sensor.sart_timer",
        "entityidfiltertype": "exact",
        "outputinitially": false,
        "state_type": "str",
        "haltifstate": "",
        "halt_if_type": "str",
        "halt_if_compare": "is",
        "outputs": 1,
        "output_only_on_state_change": true,
        "x": 110,
        "y": 220,
        "wires": [
            [
                "6b038610.2f1898"
            ]
        ]
    },
    {
        "id": "6b038610.2f1898",
        "type": "switch",
        "z": "bdaa28be.9968d8",
        "name": "",
        "property": "payload",
        "propertyType": "msg",
        "rules": [
            {
                "t": "eq",
                "v": "off",
                "vt": "str"
            },
            {
                "t": "eq",
                "v": "on",
                "vt": "str"
            }
        ],
        "checkall": "true",
        "repair": false,
        "outputs": 2,
        "x": 270,
        "y": 220,
        "wires": [
            [],
            [
                "c90e644e.d29da8"
            ]
        ]
    },
    {
        "id": "c90e644e.d29da8",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "input_boolean",
        "service": "toggle",
        "entityId": "input_boolean.alarm_clock_status",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 470,
        "y": 220,
        "wires": [
            []
        ]
    },
    {
        "id": "725b8289.3e0b9c",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 480,
        "wires": [
            [
                "c1de1a47.1a6f58"
            ]
        ]
    },
    {
        "id": "315f5064.91bd8",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 520,
        "wires": [
            [
                "f0e66411.1670b8"
            ]
        ]
    },
    {
        "id": "a006bdc6.64968",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 560,
        "wires": [
            [
                "dd2183df.6ccbd"
            ]
        ]
    },
    {
        "id": "9bdfba15.705ea8",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 600,
        "wires": [
            [
                "b15eb6c8.9bf848"
            ]
        ]
    },
    {
        "id": "73d87a90.8ee894",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 640,
        "wires": [
            [
                "56c8c1b4.0f1ac"
            ]
        ]
    },
    {
        "id": "96f762fe.4ab56",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 820,
        "y": 680,
        "wires": [
            []
        ]
    },
    {
        "id": "2f260794.e3b488",
        "type": "api-call-service",
        "z": "bdaa28be.9968d8",
        "name": "Luz TV ",
        "server": "3be8359a.800b9a",
        "version": 1,
        "debugenabled": false,
        "service_domain": "light",
        "service": "toggle",
        "entityId": "light.luz_da_televisao, light.tomada_bancada",
        "data": "",
        "dataType": "json",
        "mergecontext": "",
        "output_location": "",
        "output_location_type": "none",
        "mustacheAltTags": false,
        "x": 460,
        "y": 440,
        "wires": [
            [
                "38b6aee0.9df982"
            ]
        ]
    },
    {
        "id": "3be8359a.800b9a",
        "type": "server",
        "z": "",
        "name": "Home Assistant"
    }
]


vou deixar apenas alguns nodes pois os que estão em falta são identicos aos que aqui deixo:











Breve explicação:
ao chegar ao fim o temporizador vai me fazer piscar os leds da cozinha e os leds do movel da tv, assim como o meu google home mini vai dizer"O temporizador chegou ao fim", assim como voltar a colocar o estado do temporizador em Desligado.

Feito isto resta apenas fazer Deploy e deverá funcionar conforme funciona comigo .

Acrescento também todo o projeto de hardware que utilizei para ter um temporizador fisico na cozinha para ajudar nos cozinhados :stuck_out_tongue:


Usei :
-1nodemcu
-1lcd SSD1306 128x64
-2pushbutton
-1botão fim de curso
-jumperwires

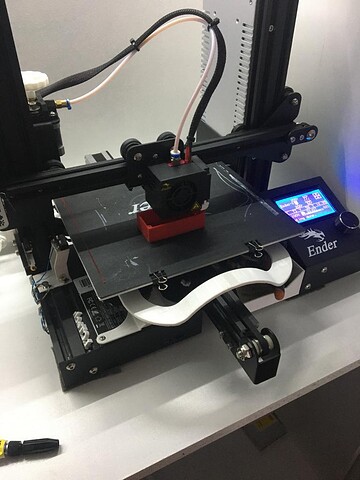

-impressao 3d

Configuração no esphome:

esphome:
  name: lcd
  platform: ESP8266
  board: esp01_1m
wifi:
  ssid: NOMEREDEWIRELESS
  password: PASSWORDWIFI
  fast_connect: True
api:
  reboot_timeout: 60s
ota:
logger:
i2c:
  sda: GPIO5
  scl: GPIO4

sensor:
  - platform: homeassistant
    id: temporizador
    entity_id: input_number.alarm_clock_minute


  - platform: homeassistant
    id: inside_temperature
    entity_id: sensor.temperatura_exterior
    internal: true

  - platform: homeassistant
    id: outside_temperature
    entity_id: sensor.temperatura_sala
    internal: true

time:
  - platform: homeassistant
    id: esptime

display:
  - platform: ssd1306_i2c
    model: "SSD1306 128x64"
    reset_pin: GPIO16
    address: 0x3C
    lambda: |-
      if (id(temporizador_status).state) {
        it.print(48, 19, id(font5), "   : ligado");
      } else {
        it.print(48, 19, id(font5), "  : desligado");
      }
      it.printf(10, 10, id(font4), ("Temporizador de: "));
      it.printf(12, 24, id(font5), "%.0f min", id(temporizador).state);
      // Print time in HH:MM format
      it.strftime(0, 60, id(font2), TextAlign::BASELINE_LEFT, "%H:%M", id(esptime).now());
      it.printf(127, 33, id(font3), TextAlign::TOP_RIGHT , "%.1f°", id(inside_temperature).state);
      it.printf(127, 60, id(font3), TextAlign::BASELINE_RIGHT , "%.1f°", id(outside_temperature).state);


font:
  - file: 'ARIALI.ttf'
    id: font1
    size: 8

  - file: 'ARIALI.ttf'
    id: font2
    size: 22

  - file: 'ARIALI.ttf'
    id: font3
    size: 14

  - file: 'ARIALI.ttf'
    id: font4
    size: 11
  - file: 'ARIALI.ttf'
    id: font5
    size: 12
switch:
  - platform: gpio
    name: "Relay"
    pin: GPIO14
binary_sensor:
  - platform: homeassistant
    id: temporizador_status
    entity_id: input_boolean.alarm_clock_status
  - platform: gpio
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: False
    name: "Mais_5_min"
  - platform: gpio
    pin:
      number: GPIO12
      mode: INPUT_PULLUP
      inverted: False
    name: "Menos_5_min"
  - platform: gpio
    pin:
      number: GPIO14
      mode: INPUT_PULLUP
      inverted: False
    name: "Sart-timer"

Desculpem pelo post tão longo e provavelmente confuso, pois confesso que não tenho muito jeito para toturiais , mas tentei o meu melhor :stuck_out_tongue:
Alguma duvida estou ao dispor.
Obrigado a todos os que contribuem para esta comunidade pois é onde tenho aprendido quase tudo o que tenho implementado e obrigado a todos os que me ajudaram atraves do discord :mechanical_arm:

Bom continuação e bons projetos.
um Abraço
Luís

1 Like

Boas.

Parabéns pelo trabalho . Interessante sobre tudo pela mistura de plataformas, que demonstra o poder do home assistant.

Concerteza que hei-de vir aqui algumas vezes tirar ideias, sobre tudo por causa do node-red. Também tenho um display oled desses em que já fiz umas brincadeiras também no esphome e é tão impressionante o tamanho dele (super-pequeno) como a definição ( alta definição.)

Bom projeto!

Falta colocares o código do node-red. O código é mais importante que os prints.

Obrigado :wink: já acrescentei

Bom trabalho, continua a partilha :wink:


Copyright © 2017-2020. Todos os direitos reservados
CPHA.pt - info@cpha.pt


FAQ | Termos de Serviço/Regras | Política de Privacidade
