PIR Sensor Motion + ESP8266

Boas.

Estou a tentar ligar estes dois meninos um ao outro mas não estou a conseguir.
Deixo o código que estou a tentar. Alterei os valores do Wifi e MQTT e mantive o "int pirPin = 12; ".

O codigo é enviado sem problemas e o nodemcu aparece na minha rede. Porém no HA o PIR encontra-se sempre desligado.
O que estou a fazer mal?
Obrigado

Codigo para o Nodemcu:

/*
 Basic ESP8266 MQTT PIR sketch

*/

#include <ESP8266WiFi.h>
#include "Adafruit_MQTT.h"
#include "Adafruit_MQTT_Client.h"

// Update these with values suitable for your network.

/************************* WiFi Access Point *********************************/

#define WLAN_SSID       "ssid"           // Wi-Fi network name
#define WLAN_PASS       "pass"           // Wi-Fi password

/**************************** MQTT Broker ************************************/

#define AIO_SERVER      "192.168.1.xxx"  // MQTT broker IP
#define AIO_SERVERPORT  1883             // MQTT broker port
#define AIO_USERNAME    "user"           // MQTT username
#define AIO_KEY         "pass"           // MQTT password
#define AIO_CID         "ESP-PIR-01"     // MQTT client ID


// Start a counter for serial logging and set the initial value to no motion
int counter = 0;
int previousReading = LOW;

WiFiClient client;
// Setup the MQTT client class by passing in the WiFi client and MQTT server and login details.
Adafruit_MQTT_Client mqtt(&client, AIO_SERVER, AIO_SERVERPORT, AIO_USERNAME, AIO_KEY, AIO_CID);

// Setup publish feeds - define topic name in parenthesis
Adafruit_MQTT_Publish status  = Adafruit_MQTT_Publish(&mqtt, AIO_CID "/feeds/motion");
Adafruit_MQTT_Publish motion_topic  = Adafruit_MQTT_Publish(&mqtt, AIO_CID "/feeds/motion");

long lastMsg = 0;
char msg[50];
int value = 0;

/////////////////////////////
//VARS
//the time we give the sensor to calibrate (10-60 secs according to the datasheet)
int calibrationTime = 15;

//the time when the sensor outputs a low impulse
long unsigned int lowIn;

//the amount of milliseconds the sensor has to be low
//before we assume all motion has stopped
long unsigned int pause = 5000;

boolean lockLow = true;
boolean takeLowTime;

int pirPin = 12;    // the digital pin connected to the PIR sensor's output
int ledPin = 16;    // the digital pin connected to built-in LED


void MQTT_connect();

void setup_wifi() {

  delay(10);
  // We start by connecting to a WiFi network
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(WLAN_SSID);

  WiFi.begin(WLAN_SSID, WLAN_PASS);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
}

  // Setup a MQTT subscription
void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Message arrived [");
  Serial.print(topic);
  Serial.print("] ");
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
  }
  Serial.println();

  // Switch on the LED if an 1 was received as first character
  if ((char)payload[0] == '1') {
    digitalWrite(BUILTIN_LED, HIGH);   // Turn the LED on (Note that LOW is the voltage level
    // but actually the LED is on; this is because
    // it is active low on the ESP-01)
  } else {
    digitalWrite(BUILTIN_LED, LOW);  // Turn the LED off by making the voltage HIGH
  }

}

void MQTT_connect() {
  int8_t ret;

  // Stop if already connected.
  if (mqtt.connected()) {
    return;
  }

  Serial.print("Connecting to MQTT... ");

  uint8_t retries = 3;
  while ((ret = mqtt.connect()) != 0) { // connect will return 0 for connected
       Serial.println(mqtt.connectErrorString(ret));
       Serial.println("Retrying MQTT connection in 5 seconds...");
       mqtt.disconnect();
       delay(5000);  // wait 5 seconds
       retries--;
       if (retries == 0) {
         // basically die and wait for WDT to reset me
         while (1);
       }
  }
  Serial.println("MQTT Connected!");
  status.publish("online");
}

void setup() {
  pinMode(BUILTIN_LED, OUTPUT);     // Initialize the BUILTIN_LED pin as an output
  Serial.begin(115200);
  setup_wifi();
  pinMode(pirPin, INPUT);
  pinMode(ledPin, OUTPUT);
  digitalWrite(pirPin, HIGH);

  //give the sensor some time to calibrate
  Serial.print("calibrating sensor ");
    for(int i = 0; i < calibrationTime; i++){
      Serial.print(".");
      delay(500);
      }
  Serial.println(" done");
  Serial.println("SENSOR ACTIVE");
  delay(50);


}

void loop() {
  // Ensure the connection to the MQTT server is alive (this will make the first
  // connection and automatically reconnect when disconnected).  See the MQTT_connect
  // function definition further below.
  MQTT_connect();

     if(digitalRead(pirPin) == HIGH){
       digitalWrite(ledPin, LOW);   //the led visualizes the sensors output pin state
       if(lockLow){
         motion_topic.publish("ON");
         //makes sure we wait for a transition to LOW before any further output is made:
         lockLow = false;
         Serial.println("---");
         Serial.print("motion detected at ");
         Serial.print(millis()/1000);
         Serial.println(" sec");
         delay(50);
         }
         takeLowTime = true;
       }

     if(digitalRead(pirPin) == LOW){
       digitalWrite(ledPin, HIGH);  //the led visualizes the sensors output pin state

       if(takeLowTime){
        lowIn = millis();          //save the time of the transition from high to LOW
        takeLowTime = false;       //make sure this is only done at the start of a LOW phase
        }
       //if the sensor is low for more than the given pause,
       //we assume that no more motion is going to happen
       if(!lockLow && millis() - lowIn > pause){
           motion_topic.publish("OFF");
           //makes sure this block of code is only executed again after
           //a new motion sequence has been detected
           lockLow = true;
           Serial.print("motion ended at ");      //output
           Serial.print((millis() - pause)/1000);
           Serial.println(" sec");
           delay(50);
           }
       }

}

Em binary_sensor.yaml:

- platform: mqtt
  state_topic: "ESP-PIR-01/feeds/motion"
  name: PIR Sensor
  payload_on: "ON"
  payload_off: "OFF"
  qos: 0
  device_class: motion

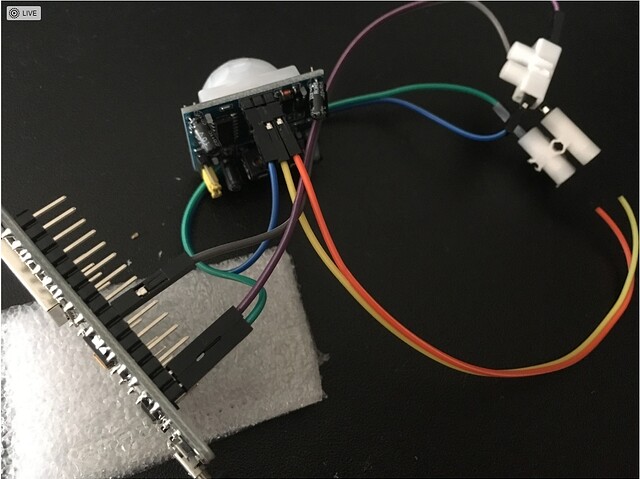

https://gyazo.com/fee81ea9f55d9fccfea2e2dc1171321b

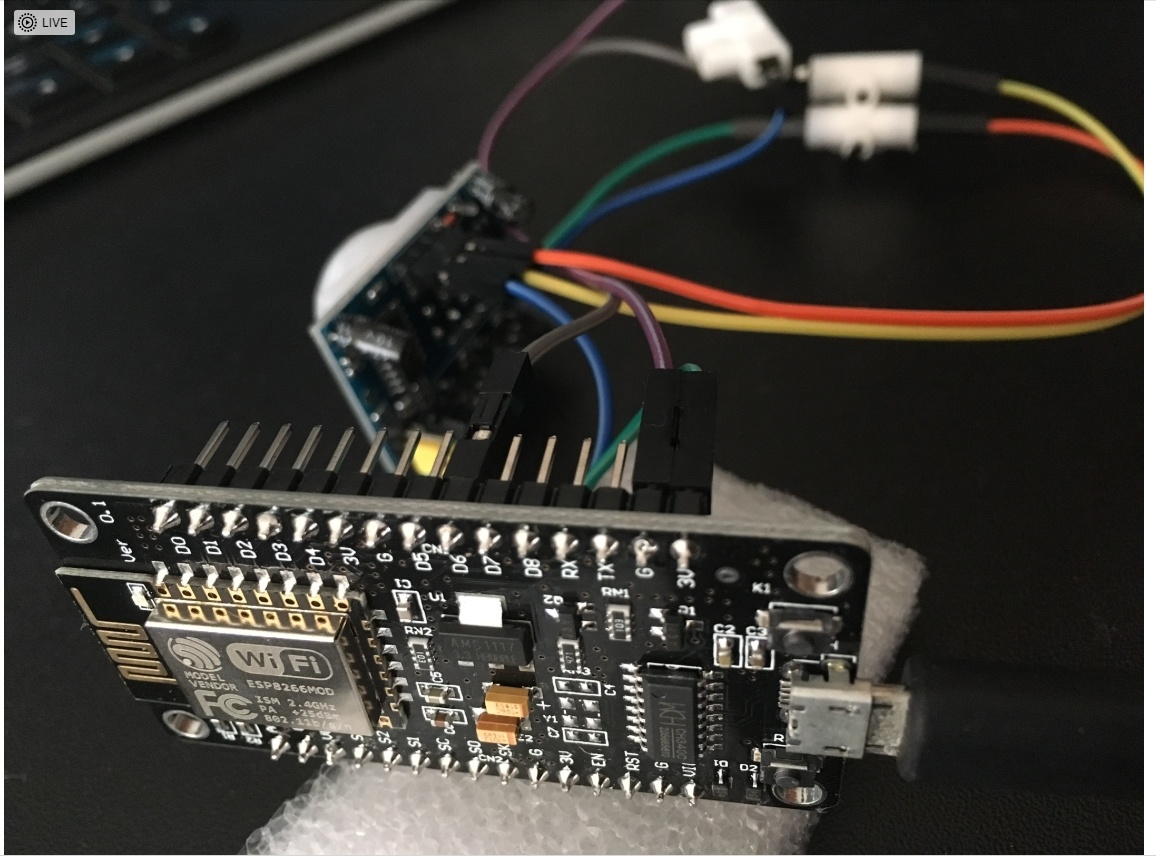

https://gyazo.com/8915d4639aca77c923924b57766969f8

@karma
O código deve ser colocado como texto aqui no fórum e formatado devidamente. Deves sublinhar o texto que queres transformar em código e clicar no icone </>. Deverá existir um espaço antes e outro depois do bloco de código para que funcione correctamente.

Boas,

Que dados aparecem no ESPlorer? Aperenta ser pin.

Aparentemente este PIR Motion que estava a usar está avariado ( falta saber se já veio assim), não faz detecção nenhuma e uma vez que tinha aqui outro testei com esse e já deu… Mas está com outro código a funcionar.
Estes PIR não são nada de especial.

Esses sensores são analógicos e costumam dar problemas devido a interferências com os ESP. Eu uso os AM320 (penso que essa a referencia) que são digitais e imunes à interferência, além de serem muito mais pequenos.

1 Curtiu

Também li sobre isso… Sobre as interferências. Quando o colocar no sitio vou blinda-lo de papel de aluminio :smile:
Esses realmente é muito mais pequeno. Mas não tem ajustes de tempo nem de sensibilidade pois não?

@karma queres instalar isso onde?

A ideia era ligar esses dois meninos. E posteriormente coloca-los no hall de entrada… Agora já o consegui por a funcionar. E pareceu-me funcionar mais ou menos. Quando o colocar no sitio é que vou tirar as duvidas.
Como também li sobre as interferencias do PIR, hei-de arranjar uma caixinha só para ele de maneira a ficar mais “protegido”. Se mesmo assim não corresponder como devido é mais um que ficará na gaveta

Mas porque não usas os sensores pir da xiaomi ou mesmo os 433? alguma razão em especial?

Não. Foi só mesmo por opção ( ou ma opção) porque quando fiz a encomenda dos ESP vi que estes PIR funcionariam lá. Então acabei por comprar também. Mas não são grande coisa. Pelo menos a meu ver… Pode ser que quando o coloque no sitio mude de opinião

Não tem ajuste directo do tempo e sensibilidade mas podes fazer as alterações que quiseres no sketch.

1 Curtiu
